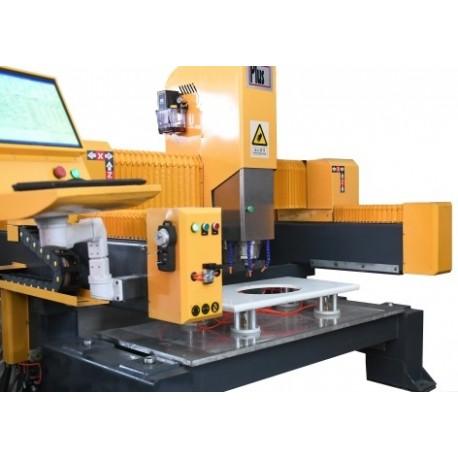

SinkMatic Total Automatic Sink Cut Out Machine
Sinkmatic Total
New product
More info
| Working length (X axis) | 51" |
| Working width (Y axis) | 31" |
| Useful working dimensions | 31" x 51" |
| Max. slab width | Free length |
| Max. slab thickness | 3" |
| Max. slab size when doing counter edges | 43.3" x 23.5" |
| Tools | 11 Automatic pickup stations |
| Working precision | ±0.004" |
| Max. X axis and Y axis speed | 100'/min |
| Max. Z axis peed | 32'/min |
| X-Y-Z axial mechanical movement | Ball bearing screws |
| Spindle | 10HP (7.5kw) (Ext. water col.) |
| Cooling system for tools | External |
| Max. rpm of spindle | 12000 rpm |
| Software | works with DXF files form AutoCAD |
| LAN and WIFI connection | for remote assistance |
| Code of program | G Code |
| Tool holder tangs | BT40 |
| Total power of machine | 13.4HP |
| Power | 220v 3 Phases |
| Weight of machine | 4000Lb |
| Dimensions of Machine | 93"L x 75"W x87"H (8'x6'x7') |
| Warranty | 1 year (parts) |
| Spare parts and support | Available in the USA |
|
Extra: Straight edge 2cm complete (cut to finish) tools with each machine. |
|
