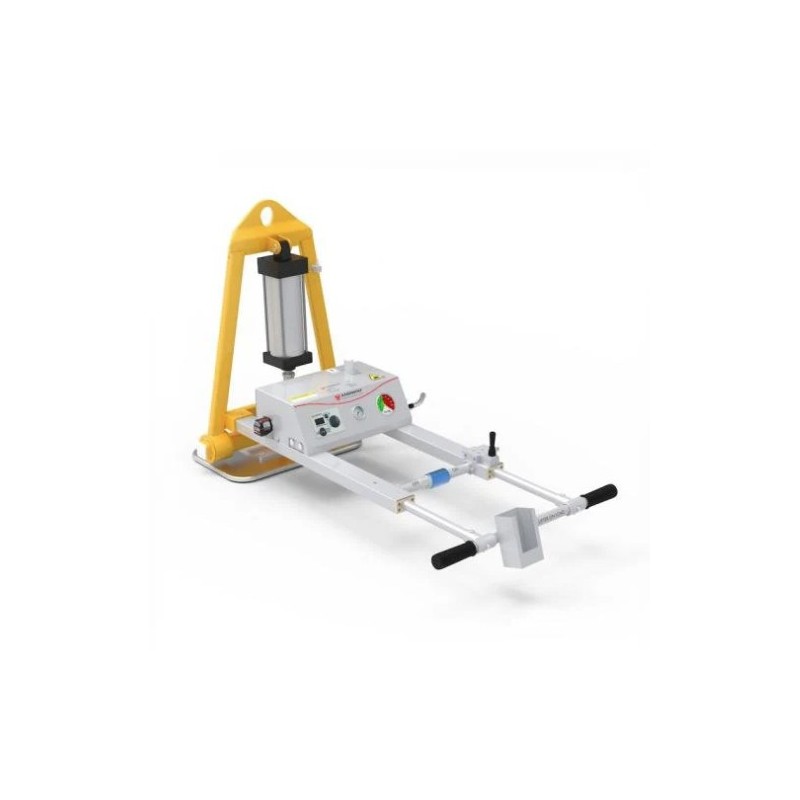

This vacuum lifter is designed to lift smooth or rough marble & granite. Features rugged construction with the added ability to lift and then tilt the stone. Powered by compressed air.
Features
Pneumatic vertical-horizontal tilting from 0 to 90° by pneumatic pistons.
Stainless steel vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
Acoustic and visual alarm system. Independently powered by a rechargeable 3.7V battery.
Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.
Specifications
Suction Pad Dimension: 520 x 320mm Number of Pads: 1 Lifting Capacity: - Horizontal Lifting: 250kg - Vertical Lifting : 240kg
Option: Suction pad 420 x 220mm, lifting capacities to 230kg horizontally and 115kg vertically.
Compressed Air Requirement Air Consumption: 100 l/min Supply Air Pressure: 5 bar at the vacuum lifter
Alarm System Battery Information - Lipo Battery Capacity: 3.7V 2000mAhx1 - Standby Time: 720h - Non Stop Working Time: 7h - Charging Requirements: + Input: 220V 50-60Hz + Output: 5V 1A - Charging Cycle: 1000 times - Charging Time: 2h
Package Dimensions:L940 x W380 x H980mm Weight Of Unit: 42.5kg
