Weha Sludge Dehydrator w/ 5 Bags  DS-50 View larger

Weha Sludge Dehydrator w/ 5 Bags DS-50

New product

More info

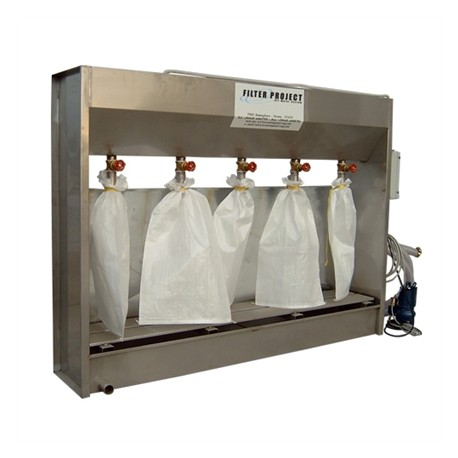

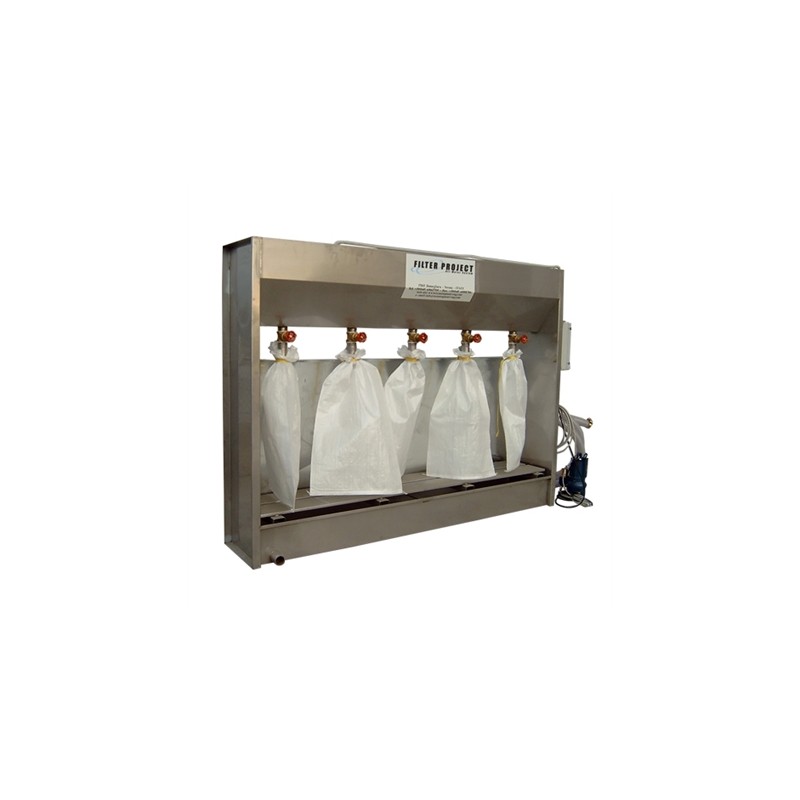

Filter Project DS-50 Sludge Dehydrator 5 Bag with Pump and Bag for Granite, Marble, Quartz, Quartzite Stone Sludge and Slurry

This multiple Sludge dehydrator will filter granite, marble, quartz, concrete, engineered stone, cultured marble, and other sludge and slurry materials.

The DS-50 Granite Sludge Dehydrator is built completely in stainless steel AISI304. This will provide years and years of use without rust or deterioration.

The mud and sludge that is drained into the pit tanks is pumped through the 1 HP submerged pump (provided) into to the upper holding tank of the dehydrator.
The sludge and
mud is gravity fed down from the holding tank and drained inside the filtering bags where the excess water comes out of the bag and the sludge and mud stay inside the bags, allowing so the dehydration of the mud.

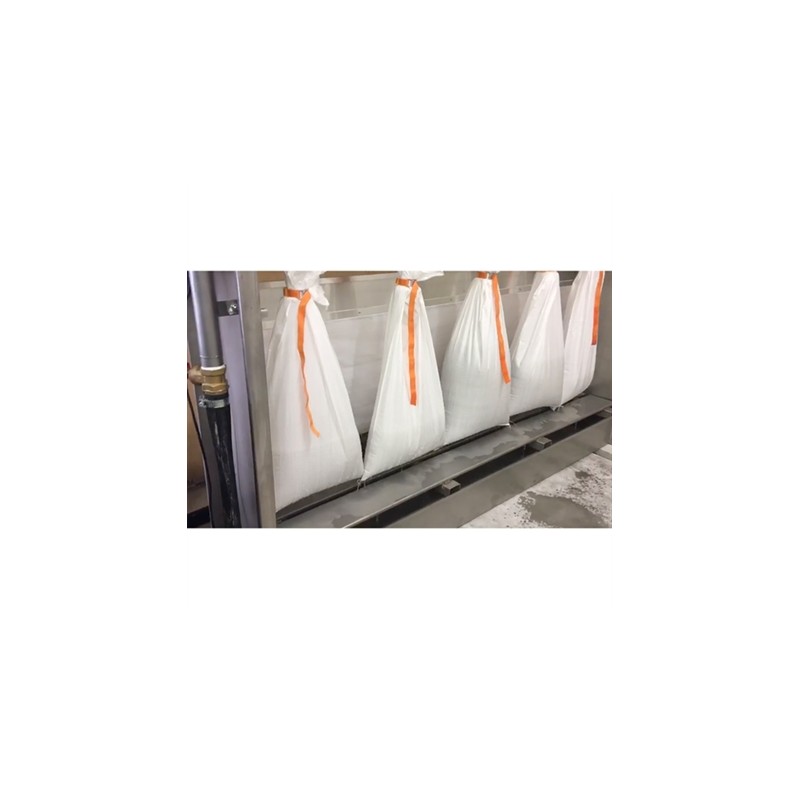

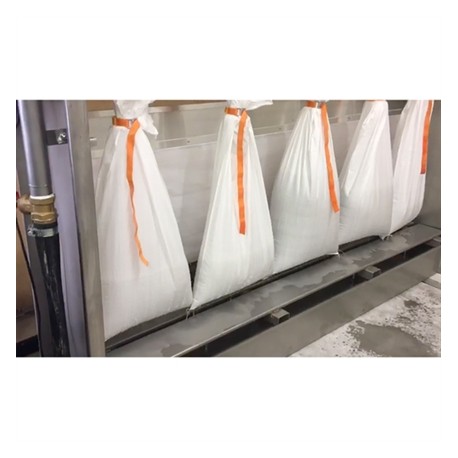

The DS-50 Stone Sludge Dehydrator is a 5 valve bag system. Each valve has a shut off valve. Once the bag has been filled, turn off the valve so the water can drain out of the sludge bag allowing the sludge/mud to dry out.

Once hardened, the bag can easily be disposed of.

The Filter Project Granite Sludge Dehydrator is certainly the cheapest and most user-friendly system to eliminate the sludge/mud from the floor pits and tanks.

One of the most dreaded jobs is getting down inside those pits with a shovel and scooping out that sludge and mud! This can take a few hours or even a full day to get 1 or more of those tanks cleaned out.
Not only that but production has to stop, be diverted, or guys come in on a weekend to get it done.
All of this costs employee time and company money.

Simply by installing a Sludge Dehydrator and having it regularly pump out the sludge from the first tank, it will drastically reduce or even eliminate any downtime and keep a tremendous amount of Sludge and mud out of those pits.
For the shops that have 2-3 tanks that allow gravity to reduce the sludge for recycling that water back through equipment, you will find the water coming out of that 2nd and 3rd tank will be so much cleaner.

The DS-50 Granite Sludge Dehydrator has a top tank capacity of 95 gallons of sludge water per day

Model: DS-50
Length: 103" (2600mm)
Width: 20" (500mm)
Height:79" (2000mm)
Weight: 308 lbs (140kg)
DS-50 Tank Capacity: 99 Gal (450 Liter) per day
MADE IN ITALY

Technical Specifications:
Pump motor: 2 HP (.75 Kw
Power requirement: 220 Three Phase

Filter Project sludge dehydrators are the best sludge dehydrators for removing Sludge and Slurry from:
Granite Sludge
Marble Sludge
Cultured Marble Sludge
Quartz Stone Sludge
Engineered Stone Sludge
Quartzite Sludge
Cement Sludge
Other materials that produce fine sludge and slurry

A little about
Filter Project sludge dehydrator company:

Filter Project Granite and Stone Sludge Dehydrators are made in Italy using premium grade stainless steel, premium valves, strong and durable submersible 1 HP pumps, and a high quality electrical system. Filter Project quality, durability, longevity, and trouble free long term use is the most important and primary goal in producing the best sludge dehydrators.
Filter Project is a family owned Italian company that only focuses on sludge dehydration, dust collection, and water filtration. They know their stuff and are extremely professional in designing, manufacturing, and maintaining the best systems in the stone industry.
Made with premium electrical parts, Italian pumps, and stainless steel parts, these Sludge Dehydrators are the best Granite and Sludge Dehydrators for stone fabrication
