THE ALL-NEW LAVINA S7 GRINDERS

Our latest LAVINA Series – S7 features a new design and upgrades that make contractors’ work easier and more efficient than ever.

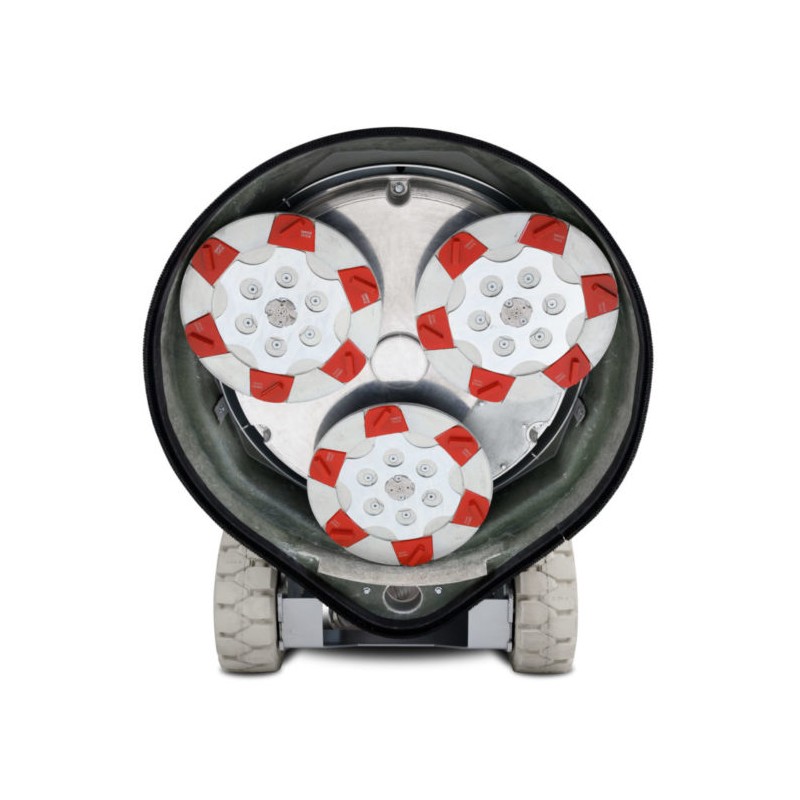

NEW SEALED & DUST-PROOF GRINDING HEAD

Longer service life and less maintenance.

• Completely redesigned chain-driven planetary drive with no chain tensioner

• New stronger timing belt

• Upgraded shafts, seals and bearings

• New lighter timing pulleys for better power transmission

•  New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance

NEW FRAME DESIGN

Better control, easier tool changes, and less vibrations.

• New weights for faster position change

• Redesigned frame allowing easier tool changes

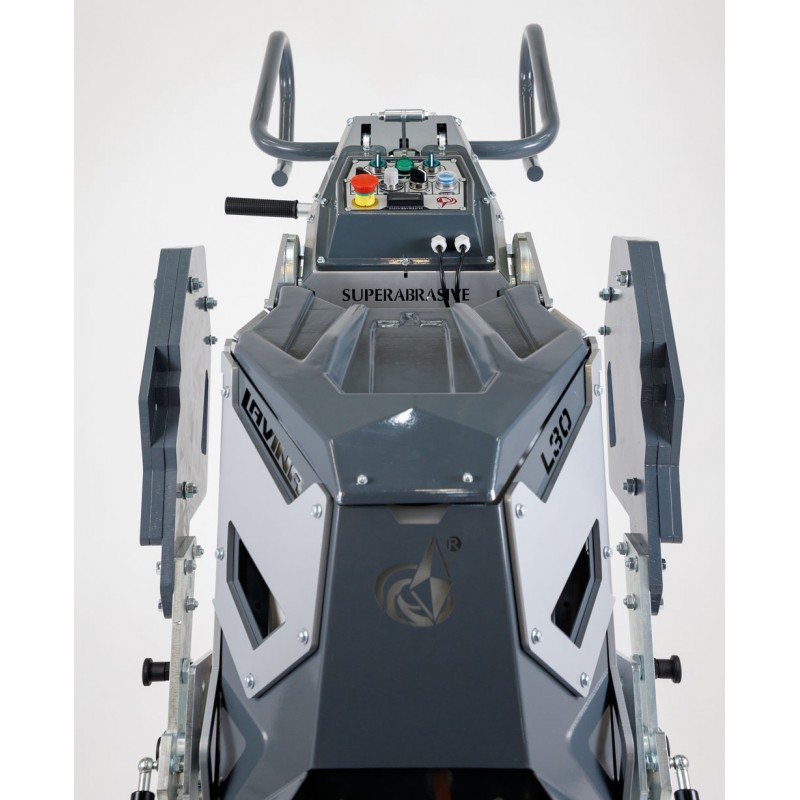

• New ergonomic handle design – faster adjustability and more positions

• Rubber bushing used at head attachment points – less vibrations for user

• Water tank cap

• Internal storage compartment

Motor Power: 15 hp / 11 kW

Voltage: 3 phase, 200-240V, 45 Amp max;

Also in HV: 3 phase, 400-480V, 30 Amp – L30HVS7

European Model: 3 phase, 380-400V, 30 Amp – L30ES7

Weight: 908 lbs / 412 kg

Grinding Pressure: 366-551 lbs / 166-250 kg

Integrated weights with 4 positions

Grinding Heads: 3 x 13.2 inch / 335-mm (Left Rotation)

Tool Holder RPM: 400-765

Camlock E300

Transport wheel – optional accessory
