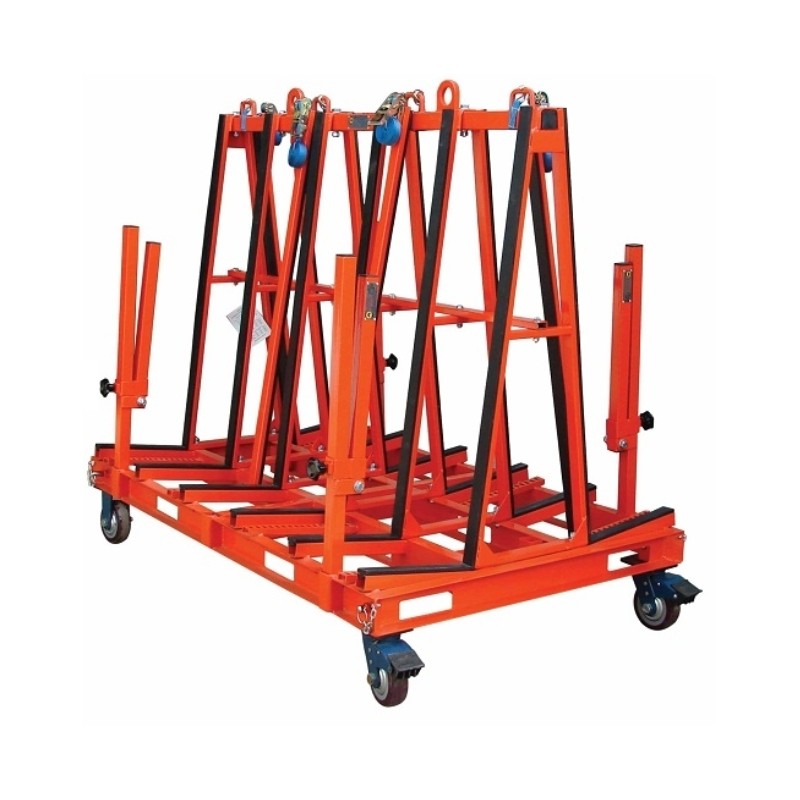

Abaco One Stop A-Frame Pro

New product

The Pro version of the One Stop A-Frame comes with four (4) Safety Arms for additional security while transporting and storing material within the factory or building site. Your slabs/glass sheets are placed on special rubber profiles and secured with four (4) ratchet securing bars. The center section can be used to store tools, back splashback, etc.

More details

More info

The Pro version of the One Stop A-Frame comes with four (4) Safety Arms for additional security while transporting and storing material within the factory or building site. Your slabs/glass sheets are placed on special rubber profiles and secured with four (4) ratchet securing bars. The center section can be used to store tools, back splashback, etc.

  The frame features two (2) eyelets that can be used to lift the frame with an overhead crane. Space is provided on all base sides for forklift transport. Quick release mounting pins change the unit from a transporting unit to a stationary one with the removal of the four (4) provided casters.



MODEL

Length

In (mm)

Width

In (mm)

Height

In (mm)

Net Weight

lbs (kg)

Lifting WITH
EYELETS
lbs (kg)

ROLLING
CAPACITY*

STATION
W / 0 CASTERS**
lbs (kg)

OSA7247PRO

71 13/16
(1824)

48 1/2
(1232)

61 1/16
(1550)

468
(213)

5500
(2500)

4400
(2000)

30800
(14000)

OSA7263PRO

71 13/16
(1824)

47 1/4
(1200)

78 3/16
(1986)

488
(222)

5500
(2500)

4400
(2000)

30800
(14000)

OSA8763PRO

86 3/8
(2194)

47 1/4
(1200)

77 15/16
(1980)

583
(265)

5500
(2500)

4400
(2000)

30800
(14000)
