Abaco Standard A-Frame View larger

Abaco Standard A-Frame

New product

Abaco Standard A-Frame

More details

More info

Abaco Standard A-Frame
SQUARE STEEL TUBING: 2 x 2 x 1/8 inches (50 x 50 x 3mm)
STRENGTHENING PLATE : 5 7/8 x 5 7/81/4 inches (150 x 150 x 6mm)INCLUDES TIMBER BLOCKS TO PROTECT MATERIAL AND IMPROVE STABILITY: 18 x 3 1/8x 4 3/8 inches  (460 x 80 x 110mm)

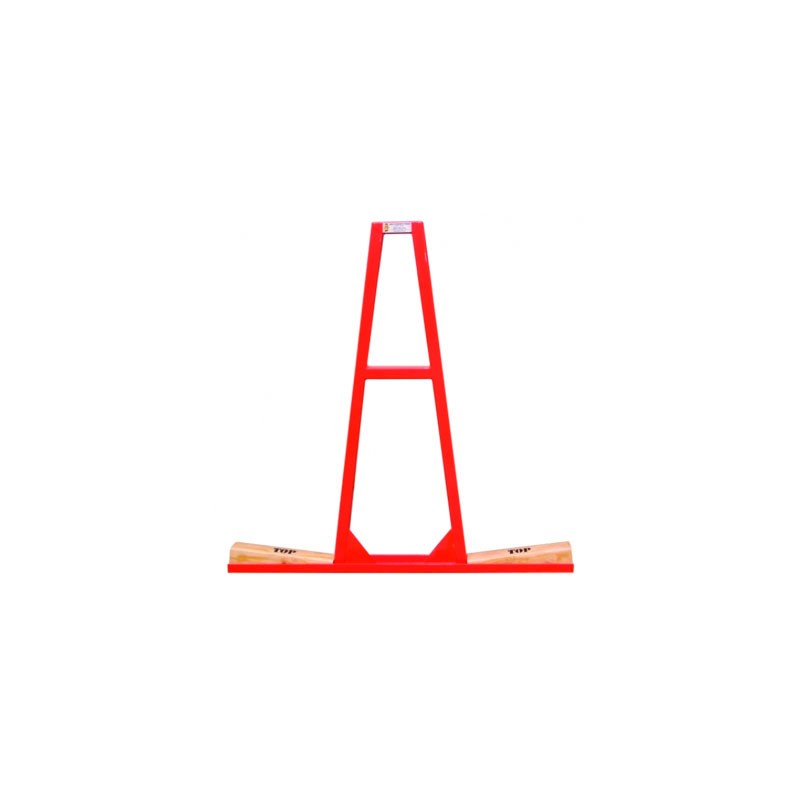

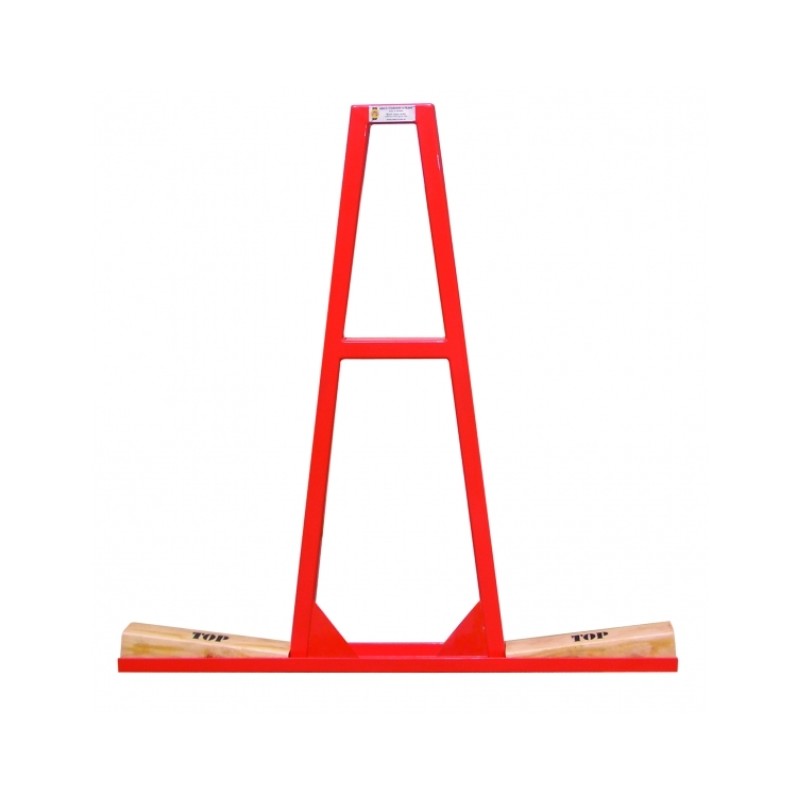

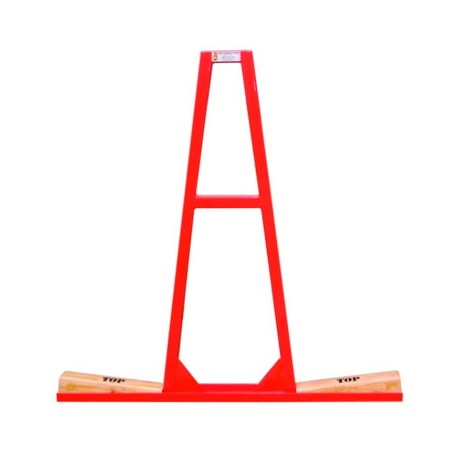

  •   Designed for the storage of slabs, the Abaco Standard A-Frame comes as a set of two. It is constructed of 2 inches square steel tubing and a 4 inches channel base with angled timber base blocks to protect material.
  •   This sturdy construction makes the Abaco Standard A-Frame an ideal choice when compared to other A-Frames on the market.

Model Number

Length

Inches (mm)

Width

Inches (mm)

Height

Inches (mm)

Net Weight

Pounds (kg)

W.L.L

Pounds (kg)

SAF060

60 (1524)

4 (100)

60 (1524)

66 (30)

12,000(5500) Per Side

24,000(11,000) Per Pair

SAF060E

60 (1524)

3 1/8 (80)

60 (1524)

46 (21)

8,000(3636) Per Side

16,000(7272) Per Pair
