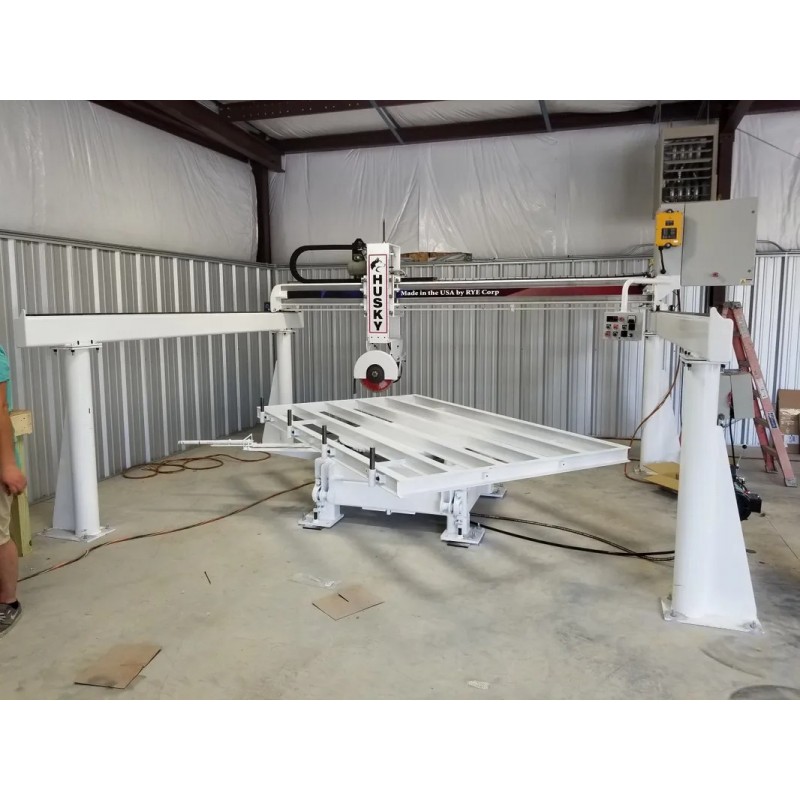

Husky 20 hp Direct Drive Bridge Saw View larger

Husky 20 hp Direct Drive Bridge Saw

Husky20hpDirectDriveBridgeSaw

New product

More info



The Husky’s controls are easy to use and you can operate the saw using the control panel and the wireless remote at the same time.

Standard features include: heavy duty 6’x10’ tilting table that stops at 0, 450, 900 and 1350  with variable locking positions; precision machined gantry and bridge; 20 HP, 220v, 3 phase direct drive VEM  motor, 18” diameter blade capacity. Miter cut capability. Water solenoid automatically turns the water on and off with the spindle motor; high intensity laser and convenient control panel with amperage guage and digital readout.  Includes 16 inch diamond blade.
SPECIFICATIONS
Product Model: Husky Gantry Saw
Structure: Precision machined rail and bridge. Overall dimensions are 15’ wide, 13’ deep, 9’ tall.
Saw Feed: Saddle travels on 12 flanged rollers. Powered variable speed movement. Water solenoid automatically turns the water on and off with the spindle motor.
Gantry Movement: Powered on V groove roller with inverter duty 1hp motor.
Vertical Movement: 16” movement. With adjustable limit switches.
Main Motor Spindle: 20 HP, 220v, 3 phase direct drive VEM  motor, 18” diameter blade capacity. Miter cut capability. Water solenoid automatically turns the water on and off with the spindle motor.
Operator Controls: Convenient control panel with amperage gauge and digital readout. Wireless operation remote control with 2 speed 3 axis control, saw motor stop/start, fwd cut maintain  OPTIONAL: 8 inch touch screen with programmable movement
Turntable: Heavy duty 6’ x 10’ rotating turntable with hydraulic tilting and positive stops set at 0, 45, 90, and 135 degrees. Variable locking positions.
Laser Light: High intensity laser to align material to blade path included.
Weight of Machine: Approximately 10,000 lbs
Warranty: 12 months on mechanical parts 6 months on electrical. Warranty starts from date of delivery. Warranty is for part replacement only, labor and travel expenses are not included

$52,000.00
